AC & DC Motor Controls

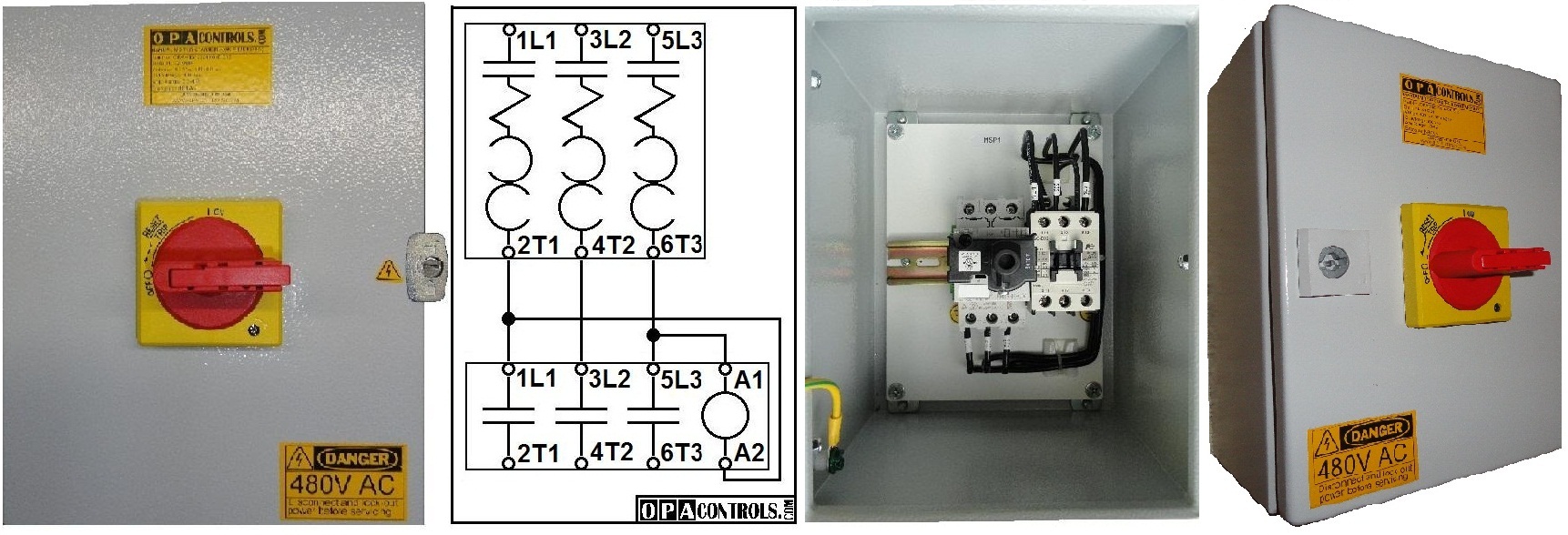

MANUAL MOTOR STARTER

Our Manual Motor Starter integrates a power disconnect, short-circuit and adjustable thermal overload protection in one compact unit. They are available in NEMA 1, 4X, 12 and in 3 phase 200-208Vac, 220-240Vac, 440-460Vac, and 575-600Vac. These units are cost effective, compact, easy to install, and maintain. They can be used in group motor installations ranging from1/2 to 75Hp in parallel with Variable Frequency Drives and Soft Starters.

PRICE: From $420 and up depending on the configuration. Please call or send us an E-Mail.

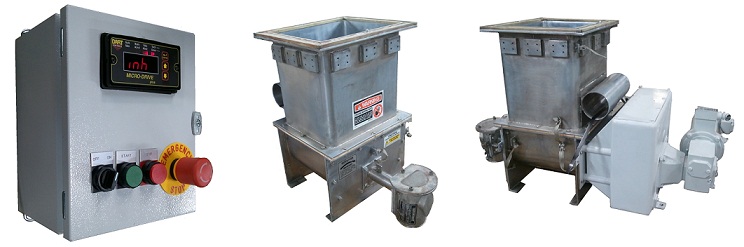

DC Drive Feeder Speed Controller

Our closed loop drive feeder control delivers clean DC current to the motor, which provides a cooler, quieter motor and also extends the motor brush life. The unit is a field-programmable closed loop DC drive system employing an advanced velocity-form PID algorithm for accurate and responsive control. It also features a unique, isolated 4-20mA input and output for easy integration with existing Process Control systems.
Standard features include: 1/50 to 2.0 HP range, universal power supply supports 85-265 VAC input, NEMA 4 stand-alone enclosure, front panel field-programming (with lock-out jumper), target and actual speed can be any engineering unit of measure, two alarm relay outputs (form C, 5 Amp @ 250 VAC), Large 1/2 in LED display, master/follower modes, displays set point or actual running speed, and adjustable PID settings.

Area of use:
·Volumetric Feeders
·Winders
·Mixers/Agitators
·Batching Conveyors
PRICE: From $1385 and up depending on the configuration. Please call or send us an E-Mail.



Motor Control with Safety Interlock

Designed for optimal protection our pre configured Combination Starters and Control Power OFF/ON Panels with Safety Relay integrated in the control logic, are an easy integration in your existing control system when safety is of concern. We have pre configured, affordable control panels that have Control Power OFF/ON circuitry with a Safety Control Relay in series to protect the operator when a Door to the machine has been opened or a light barrier has been broken. This is a must have addition if you have Old Control Panels where Control Power OFF/ON circuitry is not available. Also available in Combination with motor starters where when opening a door the motor must shut down.

· Control Power OFF-ON, with Master Control Relay (MCR) in series with a Safety Relay.
· Circuit Breaker Type Combination Starters with MCR in series with a Safety Relay.
· Type S combination starters using thermal magnetic breakers.
PRICE: From $910 and up depending on the configuration. Please call or send us an E-Mail.



INDUSTRIAL EXAUST FAN CONTROLLER

This industrial grade exhaust fan control unit is designed to maintain a stable temperature controlled environment thought the manufacturing facility. This thermal dynamic process stabilization is most necessary in the industrial manufacturing sector where temperature stabilization is of importance. It can be use in any size facility where variations in temperature can be detrimental to its manufacturing operations and its employee performance. The 256-color touch screen HMI enables the display of color-coded operator instructions and, attention-grabbing alarm screens. It has ON/OFF or Variable Speed controls of each fan with adjustable time delays in between starts. The standard unit EFC-01 comes with constant speed control while the high end unit EFC-10 can handle variable speed drives. Additional options include: TCP/IP Ethernet, GSM/SMS, MODBUS and CANopen networking plus remote access for data acquisition and program download.

The Benefits: Increases Productivity Automation allows worker to be comfortable and more productive by lowering the warehouse/production floor temperature, where Air Conditioning is not available or cost effective.
PRICE: From $2720 and up depending on the configuration. Please call or send us an E-Mail.
