VACUMM CONVEYOR

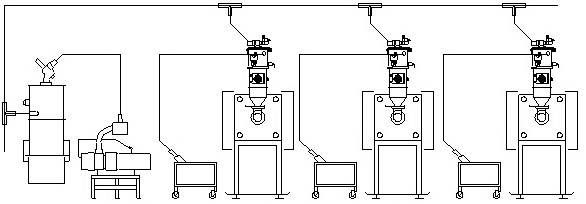

Vaccum Conveyor Controller
We manufacture a variety of control systems that are dependable, user-friendly and networkable (Modbus TCP/IP) for motion, pressure and temperature control applications.
Price: From $5,750 and up depending on the sizes of the Motors and Heaters.
We took an existing popular name brand of Vaccum Conveyor and made it more user friendly and easier to maintain. The compact VC-RE-CSK30 multi zone temperature/process controller is extremely versatile and user friendly. Very useful when it comes to rebuilding of Dry Air Dryers and Vaccuume Loaders. Essentially we replaced the aging and hard to program Siemens S5-95U PLC and HMI with a Unitronics V1040 PLC and HMI. A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, digital communications (Modbus TCP/IP), and special options.
We also added a safety feature by adding a E-stop circuit to turn off control power to prevent injuries and protect facilities and equipment.
Refurbished Vaccum Conveyor

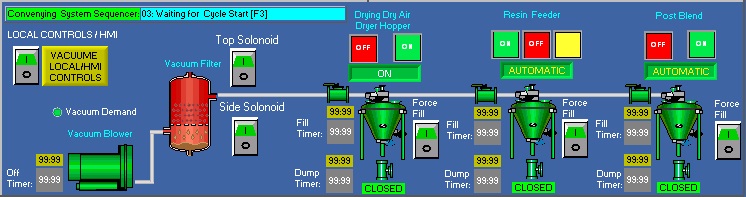

We took an existing popular name brand of Vaccum Conveyor and made it more user friendly and easier for a technician to maintain. The compact AD-RE-CT800 multi zone temperature/process controller is extremely versatile and user friendly. Very useful when it comes to rebuilding of Dry Air Dryers and Vaccuume Loaders. Essentially we replaced the aging and hard to program Siemens S5-95U PLC and OP7 HMI with a Unitronics V1040 PLC and HMI. A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, and special options. Use VC-RE-CSK30s smart data tables to log dynamic data and to store production recipes. 120K for recipes parameters, datalogs, etc’ and 192K for read-only data, ingredient names, etc’. Simply scroll between pre-programmed recipes or menus, using arrow keys or touchkeys. This enables you to choose and activate a desired task via the HMI immediately, on-site. Press the touchscreen for a few seconds to enter the PLCs Information Mode, providing you with powerful diagnostic capabilities.
We also added a safety feature by adding a E-stop circuit to turn off control power to prevent injuries and protect facilities and equipment.

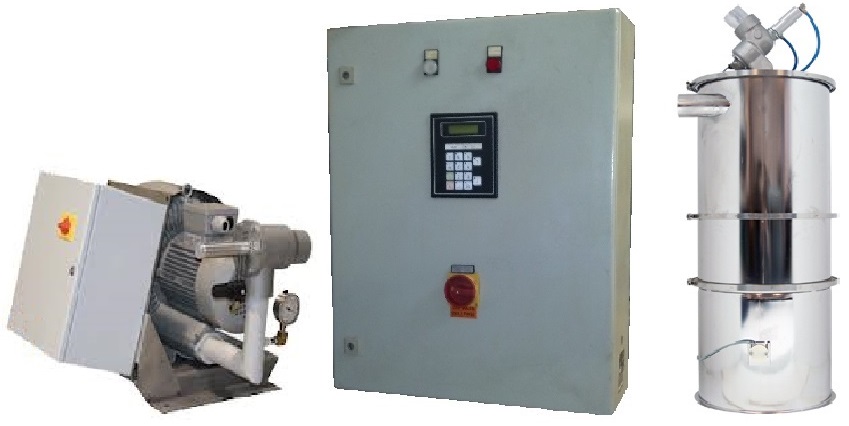

From a Old Unit
With no E-Stop and no control power Off and On.

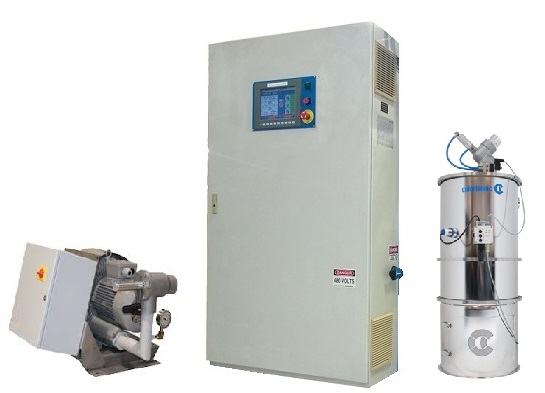

To a Technically Enhanced Unit

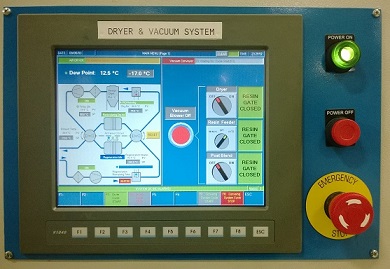

A E-Stop circuit was added in conjunction with control power Off and On. This safety enhancement and the newly redesigned controls and HMI make a safer and more efficient machine.

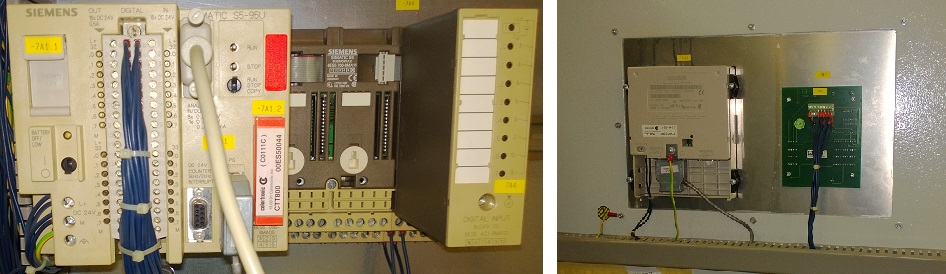

From a Old Control System

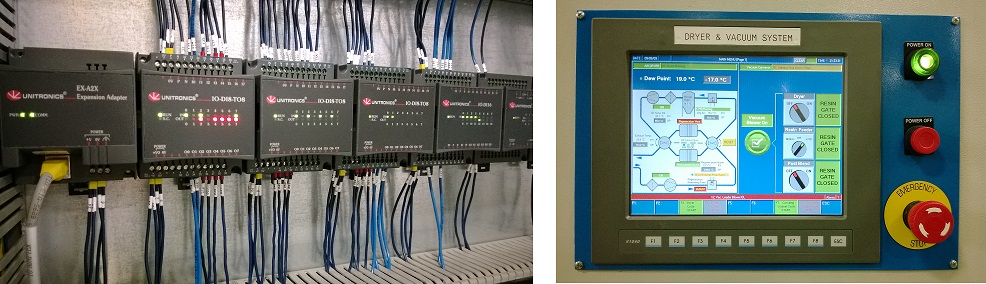

To a Low Cost User Friendly Control System
