HOT AIR OVENS
Hot Air Oven Controller
We manufacture a variety of control systems that are dependable, user-friendly and networkable (Modbus TCP/IP) for motion, pressure and temperature control applications.
Price: From $10,600 and up depending on the sizes of the Motors and Heaters.

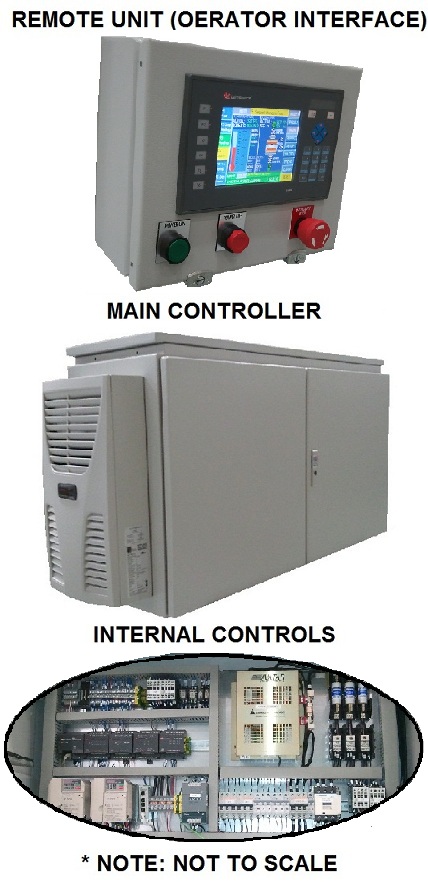

The compact HAO122 multi zone temperature/process controller is extremely versatile and user friendly. Very useful when it comes to rebuilding of hot air ovens and quench tanks. The machine operator needs to review only those parameters relevant to the particular application (heating and venting process) during setup. A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, digital communications (Modbus TCP/IP), and special options. Up to 24 built-in PID loops, including internal auto-tune, ramp-soak programmer and bumpless transfer. Use HAO122’s PID loops to economically and efficiently combine accurate process control with the flexibility of a PLC. Use HAO122s smart data tables to log dynamic data and to store production recipes. 120K for recipes parameters, datalogs, etc’ and 192K for read-only data, ingredient names, etc’. Simply scroll between pre-programmed recipes or menus, using arrow keys or touchkeys. This enables you to choose and activate a desired task via the HMI immediately, on-site. Press the touchscreen for a few seconds to enter the PLCs Information Mode, providing you with powerful diagnostic capabilities.

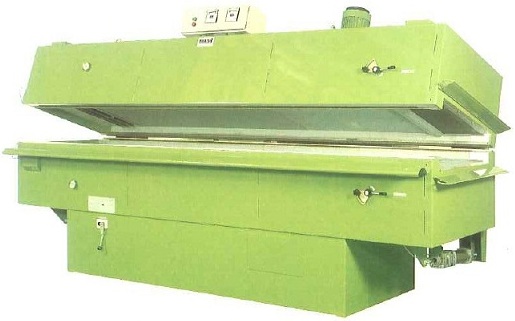

Refurbished Extrusion Machinery

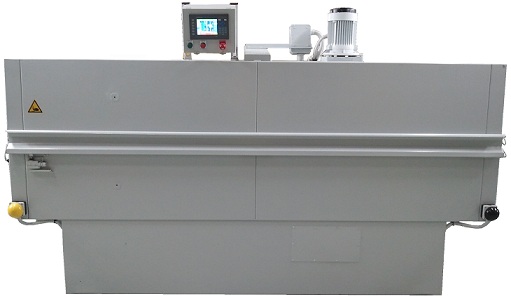

Complete insulated hot air oven controlled by a Vision560 ™ to perform precise temperature control (+/- 1 degree accuracy). The control system in this oven also controls two Yaskawa J Series variable speed drives to circulated hot air flow on top and bottom to ensure consistent temperature distribution and stability for best stretching and annealing heating efficiency and energy saving.

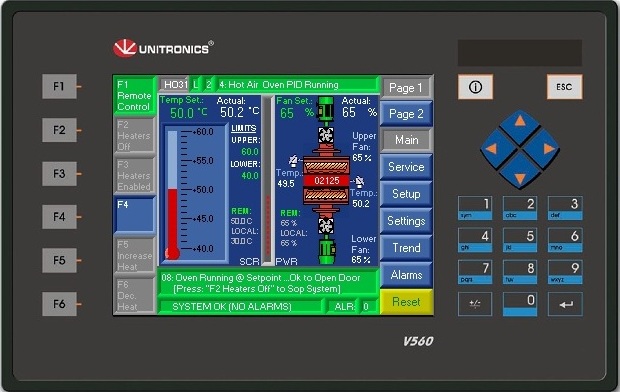

Communication options include TCP/IP Ethernet, cellular, and industrial protocols such as MODBUS and CANopen. The Vision560 ™ is capable of 24 auto-tuned PID loops to control temperature, level, and pressure, while the 320x240 Resolution color touch screen displays data, color trend graphs, and attention-grabbing alarm screens.

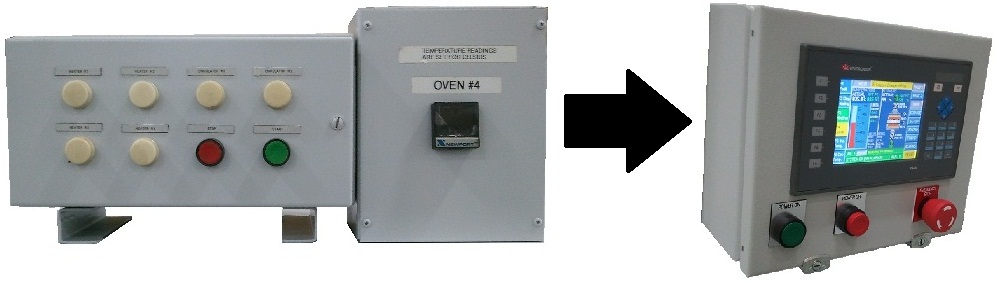

From a Old Unit
To a Technically Enhanced Unit
From Relay Logic to PLC Controls

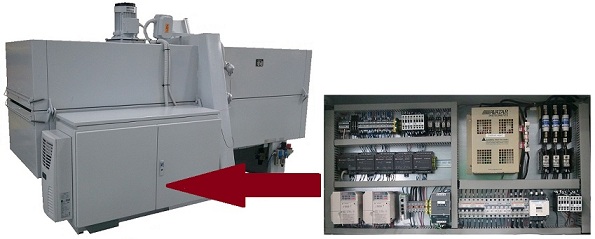

Variable Speed Drives & SSR Heater Controls
