OVEN UPGRADES & REFURBISHING

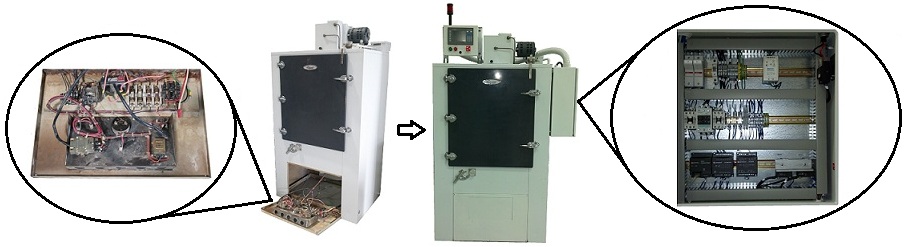

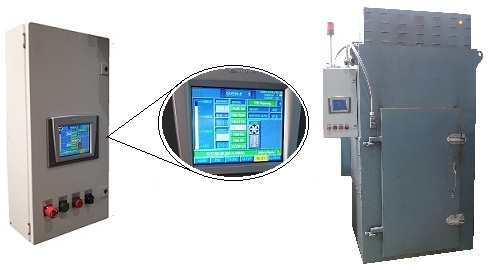

Oven Refurbishing and Controls Upgrade

We have extensive experience in most electrical oven rebuild, retrofit, or modification work, including complete electrical re-wiring controller upgrade of your oven. Our shop is equipped to handle a wide range of modification and refurbishing services for all brands of industrial ovens, including companies that are no longer in business.

Material Handling (Design and Installation):
·Overhead trolleys
·Spindle conveyors
·Pusher/Extractors
·Traveling Loaders

Electrical Components:
·New temperature controllers, programmers, etc
·Auto start-up
·Adding safety
·Variable frequency drives
·Data acquisition systems
·Upgrading the electrical system to current codes

PRICE: From $4,500 and up depending on the configuration. Please call or send us an E-Mail.

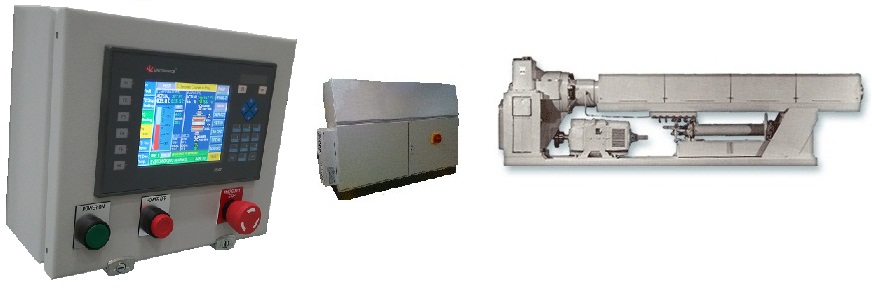

Multi Zone Temperature Controller

The compact MZT001 multi zone temperature/process controller is extremely versatile and user-friendly. Very useful when it comes to rebuilding of extruders and downstream extrusion equipment. The machine operator needs to review only those parameters relevant to the particular application (extrusion process) during setup.

A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, digital communications (Modbus TCP/IP), and special options. Up to 24 built-in PID loops, including internal auto-tune, ramp-soak programmer and bumpless transfer. Use MZT001s PID loops to economically and efficiently combine accurate process control with the flexibility of a PLC.

Use MZT001s smart data tables to log dynamic data and to store production recipes. 120K for recipes parameters, datalogs, etc' and 192K for read-only data, ingredient names, etc'.

Simply scroll between pre-programmed recipes or menus, using arrow keys or touchkeys. This enables you to choose and activate a desired task via the HMI - immediately, on-site.

Press the touchscreen for a few seconds to enter the PLCs Information Mode, providing you with powerful diagnostic capabilities.

Area of use:
· Extruders
· Conveyor Ovens
· Dryers
· Curing, Convection, Powder Coating, and Burn-In Ovens
· Bonders
PRICE: From $3800 and up depending on the configuration. Please call or send us an E-Mail.



Time Based Power Switch for Ovens and Machines

This Time Based Power Switching Unit is designed to provide power to a oven or machine on user pre-programmed time intervals. Time range is selectable to trigger in a Second, Minute, Hour, Day, Month, or Year. A typical unit can output between 110 to 600 Vac at 1-100 Amps to a Load. Other higher power units are also available on customers request. These loads are normally Pumps, Ovens, Transformers, and Automated Machines that require a long initialization process ahead of production.

Features:
· Time Based or Manual Force of Control Power OFF-ON.
· Alarm Log with On/Off Time Stamp.
· Thermal Overload and Short Circuit Protection.
PRICE: From $1470 and up depending on the configuration. Please call or send us an E-Mail.
